Material Handling Solutions
Material Handling Solutions

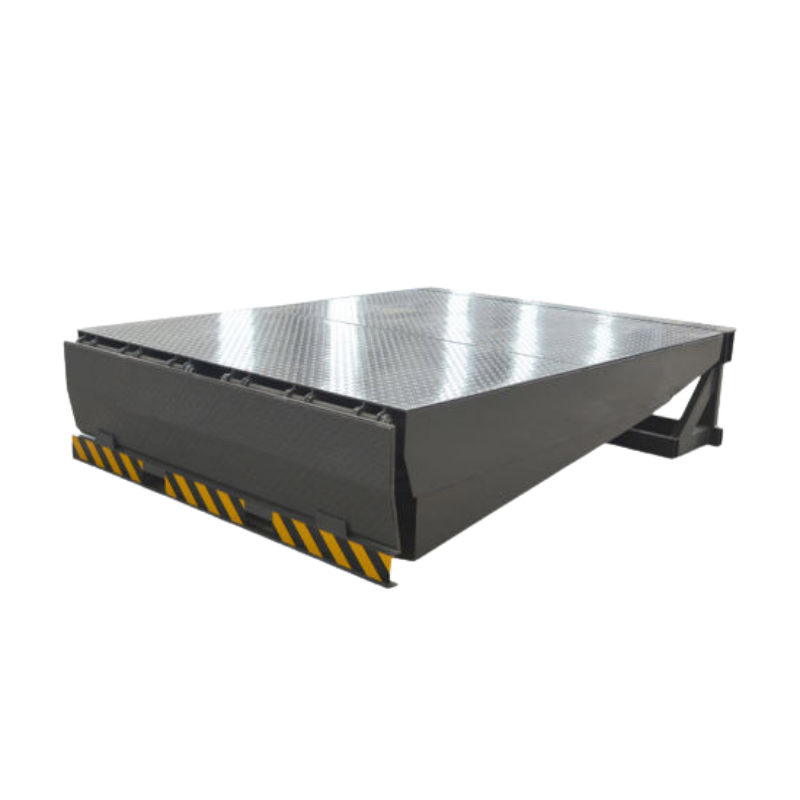

Dock Levelers
MODEL NO | CAPACITY | PLATFORM SIZE | LIP BOARD SIZE | UP/DOWN |
OTS 6T | 6000 KG | 2000X2700 | 400 MM | 300/270 |
OTS 8T | 8000 KG | 2000X2700 | 400 MM | 300/270 |
OTS 10T | 10000 KG | 2000X2700 | 400 MM | 300/270 |

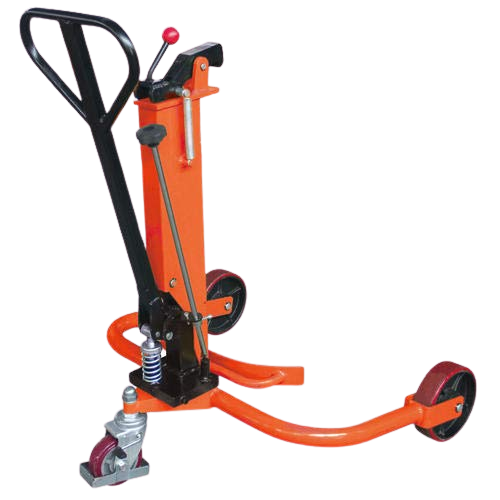

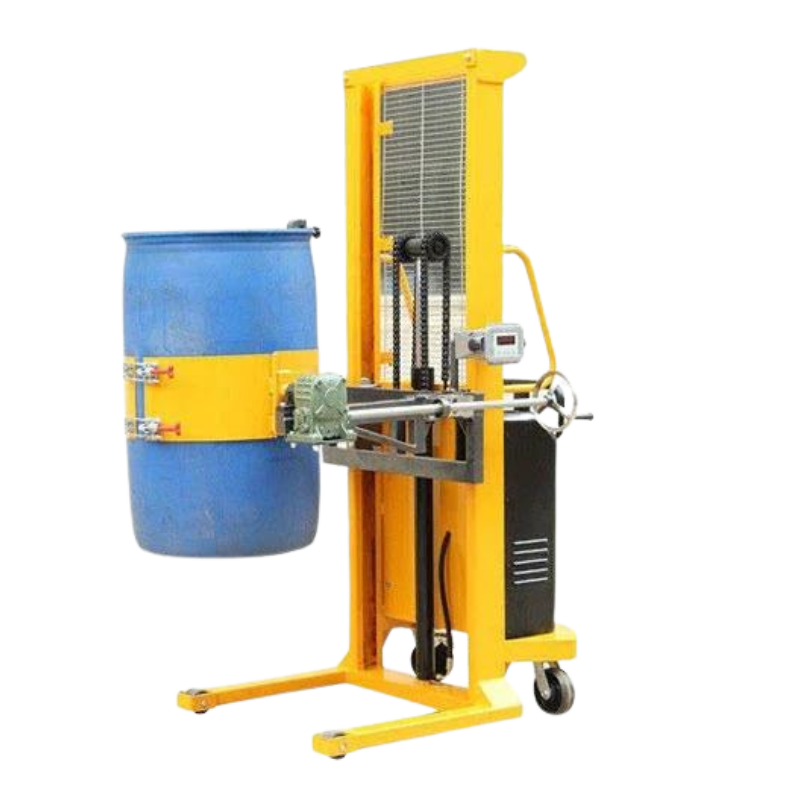

Drum Lifters
‘OTS’ Drum Lifters | |||
MODEL | NHDC | ||
LIFTING CAPACITY | KG | 250 | |
LIFTING HEIGHT | MM | 280 | |
MAX. DRUM DIAMETER | MM | 572 | |
MAX. DRUM LENGTH | MM | 915 | |
LENGTH | MM | 845 | |
WIDTH | MM | 800 | |
HEIGHT | MM | 1105 | |
NET WEIGHT | KG | 40/42 | |

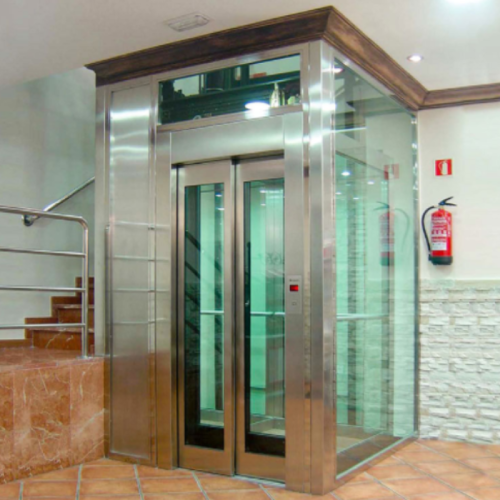

Electric Lifts
We manufacture premium quality electric lifts of custom sizes and capacity as per customer requirements. Electric elevators, starts to move through the signal and command comes from control panel. Electric elevatrors are the electrically operated devices which are used for lifting up and down, moving load in suitable direction, and lifts in multistoried buildings for facilitating up and down movements of occupants, etc. Get electric lift at best price.

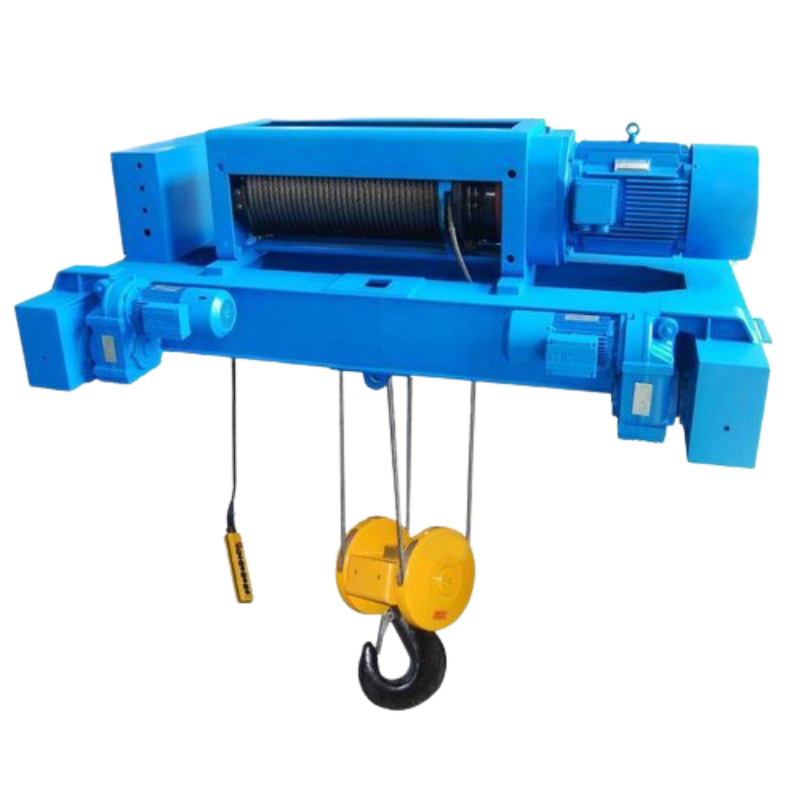

Hoists
In house developed, meeting international standards and of premium quality hoist. Hoists are mechanical or electro-mechanical lifting devices that rely on mechanical advantage to move objects vertically and support hanging loads. Mechanical hoist equipment distributes weight by using pulleys or gears to transfer low force over long distances into larger forces applied over shorter distances. Electrically powered hoists, commonly mounted to the floor or wall, are used for varied lifting and hauling operations in factories and warehouses.Get hoists at best price.

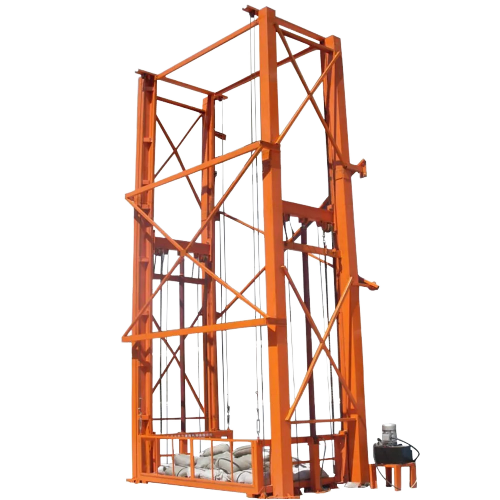

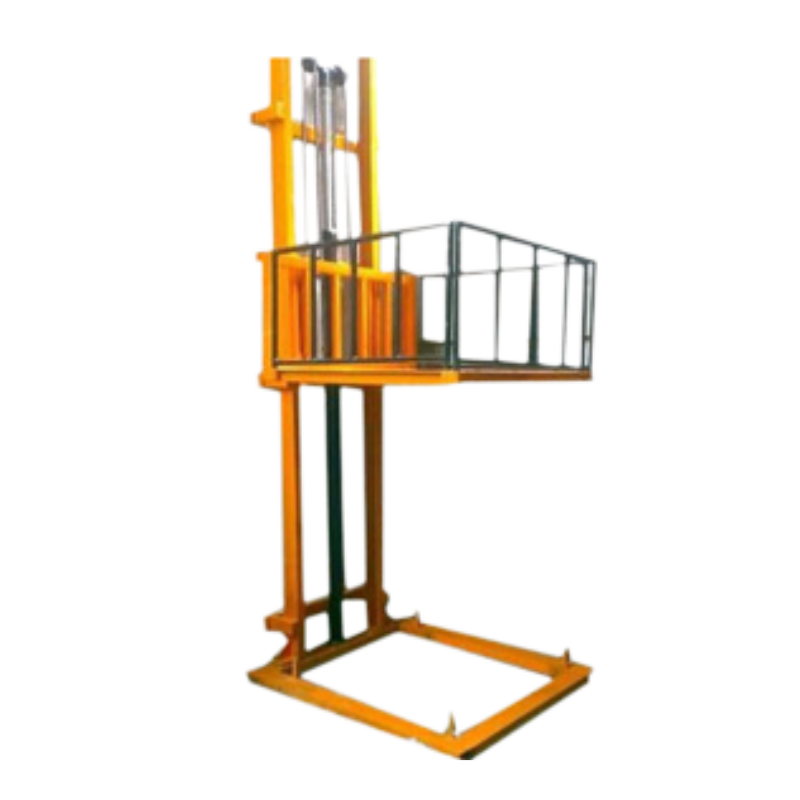

Hydraulic Lifts
We manufacture premium quality hydraulic lifts of custom sizes and capacity as per customer requirements upto maximum height of 40 feet. A hydraulic lift is a device for moving objects using force created by pressure on a liquid inside a cylinder that moves a piston upward. Incompressible oil is pumped into the cylinder, which forces the piston upward. When a valve opens to release the oil, the piston lowers by gravitational force. The principle for hydraulic lifts is based on Pascal‘s law for generating force or motion, which states that pressure change on an incompressible liquid in a confined space is passed equally throughout the liquid in all directions. Get hydraulic lifts at best price.

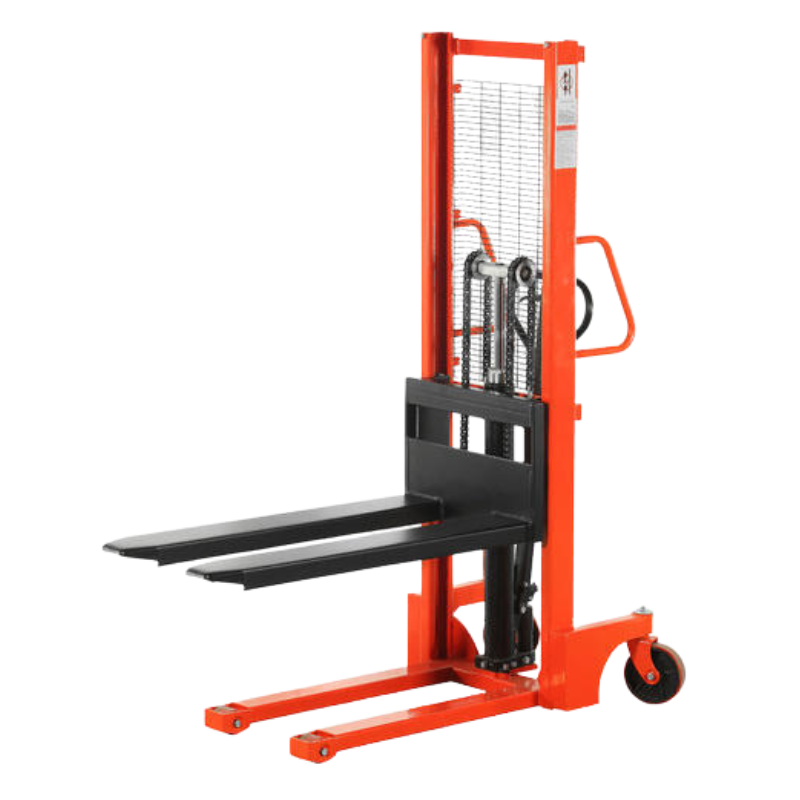

Manual Stacker
# | MODEL NUMBER | CAPACITY | LIFTING HEIGHT |
---|---|---|---|
1 | OTS 0.5-16 | 500 KG | 1600 MM |
2 | OTS 10-16 | 1000 KG | 1600 MM |
3 | OTS 10-20 | 1000 KG | 2000 MM |
4 | OTS 10-25 | 1000 KG | 2500 MM |
5 | OTS 10-30 | 1000 KG | 3000 MM |
6 | OTS 15-20 | 1500 KG | 2000 MM |
7 | OTS 15-25 | 1500 KG | 2500 MM |
8 | OTS 15-30 | 1500 KG | 3000 MM |
9 | OTS 16-20 | 2000 KG | 1600 MM |

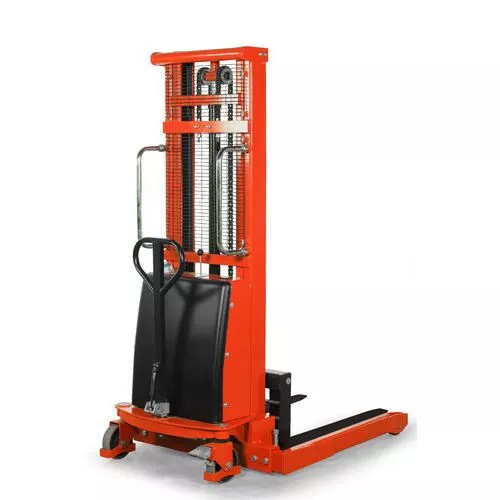

Semi Electric Stacker
MODEL NUMBER | CAPACITY | LIFTING HEIGHT |
OTS 10-16 | 1000 KG | 1600 MM |
OTS 10-20 | 1000 KG | 2000 MM |
OTS 10-25 | 1000 KG | 2500 MM |
OTS 10-30 | 1000 KG | 3000 MM |
OTS 10-35 | 1000 kg | 3500 MM |
OTS 15-20 | 1500 KG | 2000 MM |
OTS 15-25 | 1500 KG | 2500 MM |
OTS 15-30 | 1500 KG | 3000 MM |
OTS 15-35 | 1500 KG | 3500 MM |
OTS 20-16 | 2000 KG | 1600 MM |
OTS 20-20 | 2000 KG | 2000 MM |

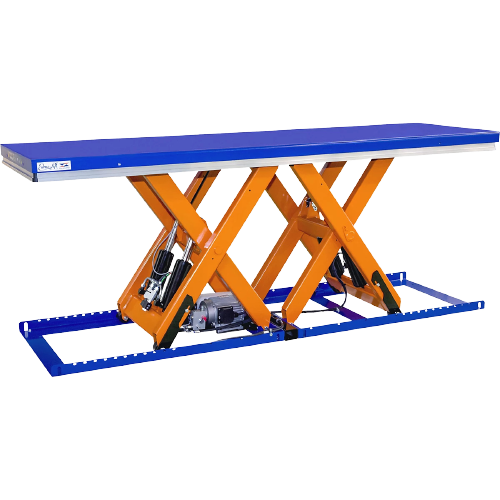

Hydraulic Scissor Lifts
# | MODEL NUMBER | CAPACITY | LIFTING HEIGHT | LOW HEIGHT | PLATFORM SIZE |
---|---|---|---|---|---|
1 | OTS 10-45 | 1000 | 4500 | 760 | 2500X2000 |
2 | OTS 20-45 | 2000 | 4500 | 760 | 2500X2000 |
3 | OTS 30-45 | 3000 | 4500 | 760 | 2500X2000 |
4 | OTS 30X45 H | 3000 | 4500 | 860 | 4500X2500 |
5 | OTS 20X60 | 2000 | 6000 | 860 | 4500X2500 |
6 | OTS 30X60 | 3000 | 6000 | 860 | 4500X2500 |

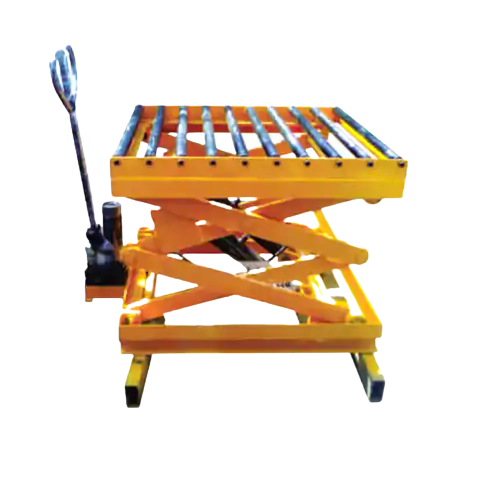

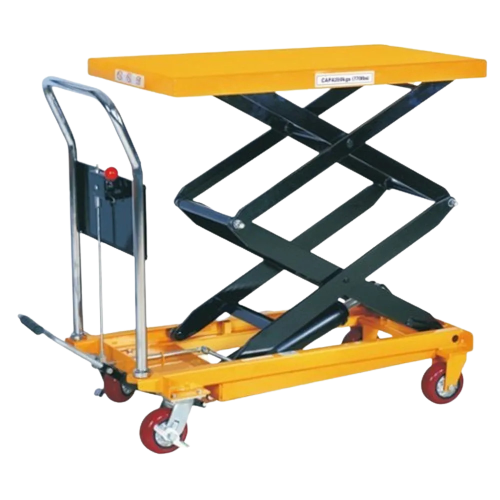

Die Loader
Die Loaders are very compact equipment used for loading unloading dies from machine tables. These Die Loader are made from very high quality raw material which ensures hassle free work performance at its user end. These Hydraulic Double Scissor Type Die Loader widely finds its applications in various material handling purposes.
Other Product Categories
Orixe Technologies & Solutions Private Limited
We are manufacturing these products using premium grade raw material that is procured from the authentic vendors of the market.
